Application: | Boiler Dust Collection | Type: | Centrifugal Fan |
---|---|---|---|
Drive: | Belt Connection | Material: | Cast Iron |
Bearing: | FAG, SKF, ZWZ, C&U | Usage: | Induced Draft Fan |
High Light: | boiler id fan,id fan blower |

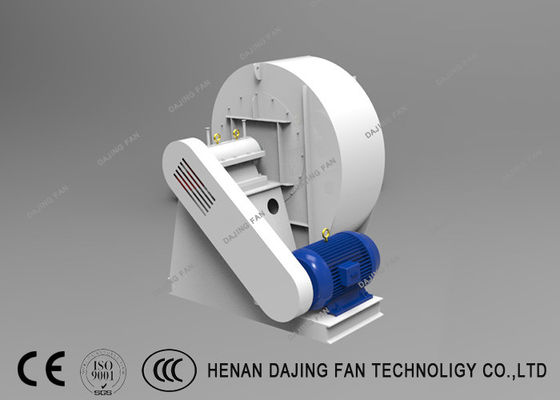

Boiler Dust Collection Induced Draft Fan Industrial Centrifugal Fan 3000pa
This series of centrifugal fans has high efficiency, low noise and stable performance curve. Mainly used for indoor ventilation, dehumidification and dust removal, etc. in factories and mines, stadiums, opera houses, basements, large and small hotels, restaurants, shopping malls and large buildings. It can also be used as a gas recycler with other types of machinery.
Boiler Dust Collection Induced Draft Fan Industrial Centrifugal Fan 3000pa |
|||
Centrifugal fan | Air Flow | 8000~50000 | m3/h |
Pressure | 900~3400 | Pa | |
Rotating speed | 2900/1450/960/730 | r/min | |
Material | Carbon steel | ||
Motor | Power | 4~55 | kw |
Voltage | 220/380/440/6000/6600 | v | |
Frequency | 50/60 | hz |
Henan DAJING FAN co ltd long lifetime fluidized bed boiler blower is applied in fluidized bed boiler system. According to fan parameters you need, DAJING FAN can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you. Below DAJING FAN co ltd fan picture for your reference.
Inlet
The inlet shall be designed in line with aerodynamics. It shall be streamlined for better airflow movement and efficiency, reducing turbulence and sound.
Belt Drive and Coupling Drive
The fan shaft shall be treated through hardening and tempering and finish turning processes up to the hardness level of HB250-280. Its maximum load shall be 35% more than the highest fan speed. The shaft shall be supported by two bearings with L10 rating service life of over 80000 hours. It shall be sealed and can be lubricated under normal operating temperatures. The pulley shall be of cast iron type and shall be sized for a minimum of 150% of the driving power. There shall be pulley and belt guard. Flexible coupling equipped with a guard shall be used. The factor of safety of power transmission and torsion shall meet the design requirements.
Motor
The motor shall be carefully matched to the fan load. It shall be IP54 rated with class F insulation. Ball bearing that can be lubricated shall be used. The motor and drive mechanism shall be isolated from the airstream to avoid grease or dirt accumulation.
Centrifugal fan production process:
Case Show:
FAQ
Q1: What information do you need to select the suitable fan model?
A: Air flow, total pressure or static pressure, voltage, working condition.
Q2: Can I use my own LOGO design on goods?
A: Yes, customized logo and design on mass products are available.(It can’t constitute infringement)
Q3: What is the delivery term for making business?
A: In general, we send the shipment in FOB term. However, the terms of CIF and C&F are acceptable which depends on the preference of the client.
Q4: How do you control the product’s quality?
A: All the products have quality testing and dynamic balance before delivery.
