Product Details:
Payment & Shipping Terms:
|
| Application: | Industrial Boiler Flue Gas | Blade Material: | Cast Iron |
|---|---|---|---|
| Voltage: | 220v,380v,420v | Usage: | Induced Draft Fan |
| Frequency: | 50hz/60hz | Electric Current Type: | AC |
| High Light: | flue gas blower,double inlet centrifugal fan |
||

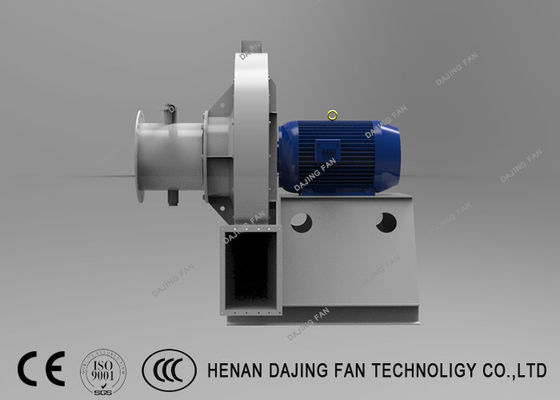

Industrial Boiler Flue Gas Centrifugal Fan High Pressure Direct Driven
The Model 9-19 and 9-26 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. The medium does not contain any adhesive materials. The gas temperature is ≤80℃,and the dust and particle volume are ≤150mg/m3. It is generally suitable for enforced high pressure ventilation in such
industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.
|
Industrial Boiler Flue Gas Centrifugal Fan High Pressure Direct Driven |
|||
| Centrifugal fan | Air Flow | 800~13500 | m3/h |
| Pressure | 3200~12700 | Pa | |
| Rotating speed | 2900/1450 | r/min | |
| Material | Carbon steel | ||
| Motor | Power | 2.2~55 | kw |
| Voltage | 220/380/440/6000/6600 | v | |
| Frequency | 50/60 | hz | |
DAJING FAN's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
Optional components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank etc.
Centrifugal fan production process:
Case Show:
FAQ
Q1: What information do you need to select the suitable fan model?
A: Air flow, total pressure or static pressure, voltage, working condition.
Q2: What about the lead time?
A: Sample needs 5-7days, mass production time needs 7-30 days for order quantity more than MOQ.
Q3: What is your payment terms?
A: Payment terms vary among different countries. Generally, 30% T/T in advance, 70% balance before shipment.
Q4: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
