| Frequency: | 50hz/60hz | Impeller Test: | Dynamic Balancing Adjusting |
|---|---|---|---|
| Phase: | 3-phase | Electric Current Type: | AC |
| Colour: | Customizable | Application: | Kiln Boiler |
| High Light: | boiler blower fan,fd fan in boiler |
||

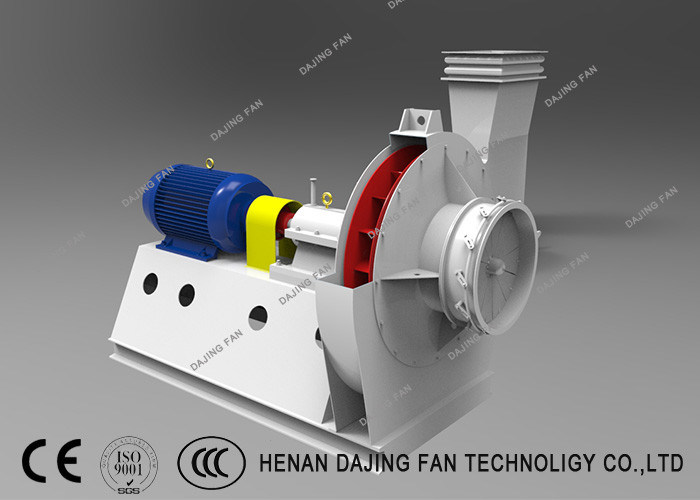

Forced Draft Boiler Fan Centrifugal Blower High Pressure With Silencer 55kw
The Model 9-19 and 9-26 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. The medium does not contain any adhesive materials. The gas temperature is ≤80℃,and the dust and particle volume are ≤150mg/m3. It is generally suitable for enforced high pressure ventilation in such
industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.
|
Forced Draft Boiler Fan Centrifugal Blower High Pressure With Silencer 55kw |
|||
| Centrifugal fan | Air Flow | 6000~41500 | m3/h |
| Pressure | 3500~25000 | Pa | |
| Rotating speed | 2900/1450/960 | r/min | |
| Material | Carbon steel | ||
| Motor | Power | 7.5~410 | kw |
| Voltage | 220/380/440/6000/6600 | v | |
| Frequency | 50/60 | hz | |
Centrifugal Fan
Because of the high pressure they create, centrifugal fans are ideal for high pressure applications such as drying and air conditioning systems. As all of their moving parts are enclosed and they also have particulate reduction properties that makes them ideal for use in air pollution and filtration systems. Centrifugal fans also offer distinct benefits:
First-rate energy efficiency.
Constant airflow allows centrifugal fans to generate energy that reaches up to 84% static efficiency. These higher efficiency levels are ideal for sustaining larger air systems.
Enhanced durability.
These fans are durable enough to properly operate in the most corrosive and erosive environments.
Ability to restrict overloading. Certain centrifugal fans are fitted with non-overloading horsepower curves will ensure the motor will not overload if its capacity is exceeded.
Easy to maintain.
Lighter material fans can be easily cleaned when you deem it necessary. Moreover, certain fans have self-cleaning characteristics, making daily maintenance that much easier.
High versatility.
Centrifugal fans are useful for multiple airflow/pressure combinations, and they can process several airflow conditions, including clean, dry, and wet air.
Multiple sizes.
These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.
Centrifugal fan production process:
Case Show:
