Product Details:
Payment & Shipping Terms:
|
Type: | Axial Flow Fan | Blade Material: | Steel |
---|---|---|---|
Voltage: | 220V/380V/440v | Rotating: | 1450r/min |
Application: | Exhaust Ventilation | Pressure: | 400Pa |
High Light: | ac axial fan,industrial axial flow fan |

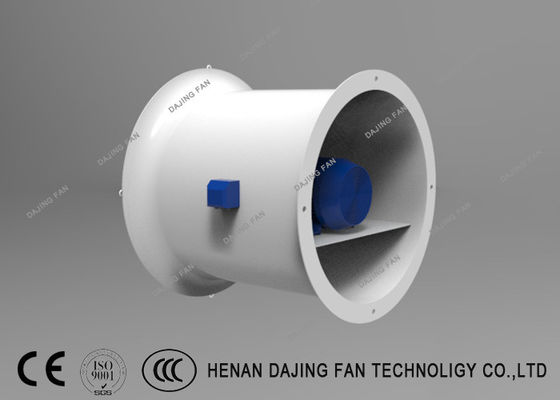

800mm Axial Fan Carbon Steel Low Pressure Ventilation With AC Motor
Axial fan is widely applicable for the wall type exhaust, post blast, pipeline ventilation is the mining and industrial enterprises, civilpurpose buildings. It can also be used in the working occasions of chemical, light industry, food, medicine, metallurgy, power station, communications etc and the storage ventilation airconditioner system.
800mm Axial Fan Carbon Steel Low Pressure Ventilation With AC Motor |
|||
Centrifugal fan | Air Flow | 600~70000 | m3/h |
Pressure | 30~500 | Pa | |
Rotating speed | 2900/1450/960 | r/min | |
Material | Carbon steel | ||
Motor | Power | 0.25~15 | kw |
Voltage | 220/380/440 | v | |
Frequency | 50/60 | hz |
1. Application
The T-35 type axial fan is not only suitable for the workshop, warehouse, hotel, shopping mall, restaurant, office’s ventilation, but also used for the refrigeration, air conditioning and refrigeration equipment ancillary.
It is easy to install, good air-change effect, security, can send the air to anywhere via air duct.
2. Structure:
The axial fan contains 1, nave; 2, blade; 3, axle; 4, shell; 5,wind collector; 6, fairing; ,7, rectifier; 8,diffuser; 9, and the wind inlet and impeller etc;
3. Type:
The fans conisist of steel fan, FRP fan, plastic fan, PP fan, PVC fan, aluminum fan, stainless steel fan etc according to differnet material
The fans are divided into anti-corrosion fan, anti-explosion and anti-corrosion fan. According to the usage.
The fans are didivded into induct fan, wall type fan, fixed type fan, rainproof and dustproof fan, external motor type fan etc. according to the customers’ requirements.
Axial flow fan is composed by impeller, cabinet (including support) and electric machinery. The impeller with three vanes fixed in the axis of eclectic machinery. So its well working. The support joined with bracket is columnar and made up of FRP material. No collision and extrusion when fixing and repairing the blower. This kind of blower can run a long time.
Centrifugal fan production process:
Case Show:
