Product Details:
Payment & Shipping Terms:
|
| Bearing: | FAG, SKF, ZWZ, C&U | Drive: | Coupling Connection |
|---|---|---|---|
| Impeller: | Forward Impeller Blade | Usage: | Blowing Air |
| Warranty: | 1 Year | Application: | Garbage Incineration Power Plant |
| High Light: | silent centrifugal fan,direct drive centrifugal blower |
||

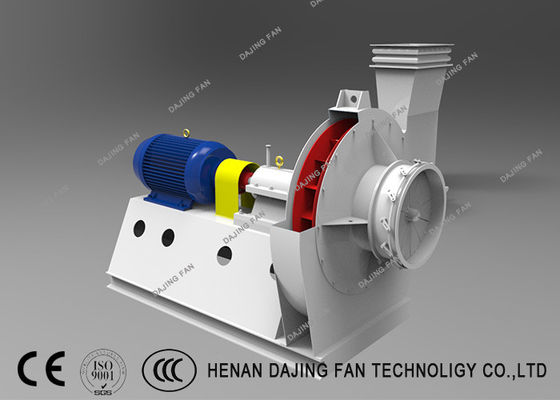

Heavy Duty Centrifugal Blower For Garbage Incineration Power Plant
The Model 9-19 and 9-26 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. The medium does not contain any adhesive materials. The gas temperature is ≤80℃,and the dust and particle volume are ≤150mg/m3. It is generally suitable for enforced high pressure ventilation in such
industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.
|
Heavy Duty Centrifugal Blower For Garbage Incineration Power Plant |
|||
| Centrifugal fan | Air Flow | 6000~41500 | m3/h |
| Pressure | 3500~1500 | Pa | |
| Rotating speed | 2900/1450/960 | r/min | |
| Material | Carbon steel | ||
| Motor | Power | 7.5~410 | kw |
| Voltage | 220/380/440/6000/6600 | v | |
| Frequency | 50/60 | hz | |
The centrifugal fan is a mechanical machine that relies on input mechanical energy to increase gas pressure and deliver gas. It is a driven fluid machine. It is widely used for ventilation, dust extraction and cooling in factories, mines, tunnels, cooling towers, vehicles, ships and buildings; ventilation and air intake in boilers and industrial furnaces; cooling in air conditioning equipment and household appliances Ventilation; drying and selection of grain; inflation and propulsion of wind tunnel sources and hovercraft.
Centrifugal fan production process:
Case Show:
