| Usage: | Induced Draft Fan | Impeller Test: | Dynamic Balancing Adjusting |
|---|---|---|---|
| Power: | 1.1~50 KW | Application: | Dust Removal Equipment |
| Impeller: | Backward Impeller Blade | Bearing: | FAG, SKF, ZWZ, C&U |
| Mounting: | Free Standing | Feature: | High Efficiency |
| High Light: | centrifugal exhaust fan,centrifugal air blower |
||

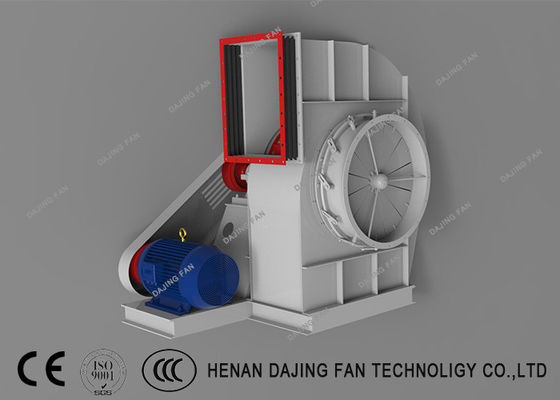

Brick Kiln Large Capacity Centrifugal Fan Medium Pressure V-Belt Drive
This series of centrifugal fans has high efficiency, low noise and stable performance curve. Mainly used for indoor ventilation, dehumidification and dust removal, etc. in factories and mines, stadiums, opera houses, basements, large and small hotels, restaurants, shopping malls and large buildings. It can also be used as a gas recycler with other types of machinery.
|
Brick Kiln Large Capacity Centrifugal Fan Medium Pressure V-Belt Drive |
|||
| Centrifugal fan | Air Flow | 8000~50000 | m3/h |
| Pressure | 900~3400 | Pa | |
| Rotating speed | 2900/1450/960/730 | r/min | |
| Material | Carbon steel | ||
| Motor | Power | 4~55 | kw |
| Voltage | 220/380/440/6000/6600 | v | |
| Frequency | 50/60 | hz | |
1. Impeller:
Consists of tilting circular arc thin plate blade, curve front plate and flat plate rear disc, all made of steel plate and corrected by static and dynamic balance, air performance is good, efficiency is high, noise is low, operation is stable. 3. 5 is composed of 12 leaves, 4. 5 is composed of 14 leaves, and more than 5 is composed of 16 pieces.
2. Housing:
Made into two different types, the 3-12 housing is integrated and can not be disassembled; the 14-20 housing is made into two open types, divided in two halves along the middle horizontal plane and connected by bolts.
3.Inlet:
Made into a whole, installed on one side of the fan, parallel to the axial section of the curve shape, can make the gas enter the impeller smoothly, and the loss is relatively small.
4.Transmission:
Consists of spindle, bearing box, rolling bearing and belt wheel.
Advanced Process
The plasma cutting, positioning fixture of high precision and all-welding technique contribute to the smoothness, high strength and great reliability of the steel blades that has uniform stress distribution for long-term high speed running.
High Balance Quality Grade
Each wheel has been dynamically balanced up to G4.0 standard (Just G6.3 for general products domestically and internationally).Durability, stability and quietness are guaranteed.
Wide Performance Range of High Efficiency
The wheel has stable and flat performance curves over a wide range of operating conditions which can efficiently avoid performance drop as the operating point moves up or down.
Centrifugal fan production process:
Case Show:
