| Phase: | 3-phase | Usage: | Induced Draft Fan |
|---|---|---|---|
| Electric Current Type: | AC | Type: | FRP Centrifugal Fan |
| Bearing: | FAG, SKF, ZWZ, C&U | Feature: | Anti-Corrosion |
| High Light: | frp centrifugal blower,industrial dust blower |
||

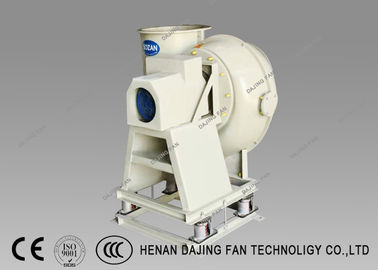

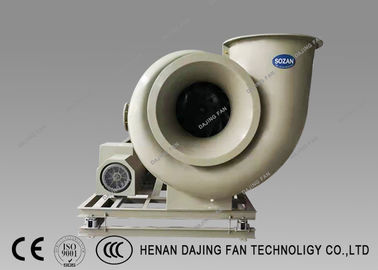

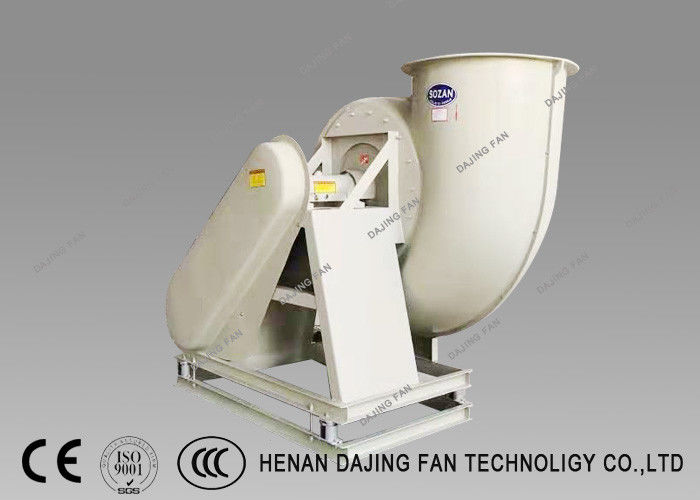

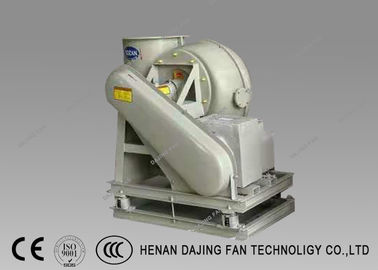

Industrial Process Applications FRP Centrifugal Fan Ventilation Corrosion Gas
The fan is made of polyester glass fiber reinforced plastic. The centrifugal fan is a new type of anti-corrosion fan with the characteristics of high strength, light weight, good corrosion resistance, not easy aging, low noise, multiple specifications and many applications. The fan is suitable for discharging corrosive gas with a certain concentration, and can also be used as general building ventilation for ventilation.
|
Industrial Process Applications FRP Centrifugal Fan Ventilation Corrosion Gas |
|||
| Centrifugal fan | Air Flow | 600~15000 | m3/h |
| Pressure | 240~3500 | Pa | |
| Rotating speed | 2900/1450 | r/min | |
| Material | FRP | ||
| Motor | Power | 0.55~7.5 | kw |
| Voltage | 220/380/440 | v | |
| Frequency | 50/60 | hz | |
Product Description
The series of fans can convey corrosive gases containing acid, alkali and chemical components.Conveying gases are not allowed to contain a sticky, including dust and hard particle acuities were 150 mg/m3, gas temperature of 80 ℃ or less and relative humidity of 95% or less, this Kind of fan has high strength, light weight, not easy ageing, good corrosion resistance, low noise, stable running, etc.It is an ideal anti - corrosion and acid - alkali fan.The fans are widely used in chemical industry, electroplating, oxidation, power plant, laboratory, circuit board, environmental protection equipment and other places containing corrosive gases.
Main Features
Name: Explosion proof centrifugal fan
Customizing the fans according to customers' requirements.
Delivery time for sample order: 3-10 days, for pallets order 7-20 days after receiving payment;
Warranty: 1 year for repairing or replacement of fans, customs duty & freight not included.
Light weight and high performance
The weight of FRP is only about 1/4 that of steel, so that FRP wheel is lighter. Shaft power needed by starting is remarkably lowered, so that the efficiency is improved and energy consumption is lowered. The expansion coefficient of FRP is smaller than that of steel, so that fitting gap between air inlet and wheel is reduced, aerodynamic performance further enhanced, turbulent flow reduced, and the noise lowered.
