Product Details:
Payment & Shipping Terms:
|
| Feature: | Middle Pressure | Drive: | Belt Connection |
|---|---|---|---|
| Impeller: | Backward Impeller Blade | Material: | Cast Iron |
| Voltage: | 220v,380v,420v | Phase: | 3-phase |
| High Light: | dust extractor blower,industrial blower fan |
||

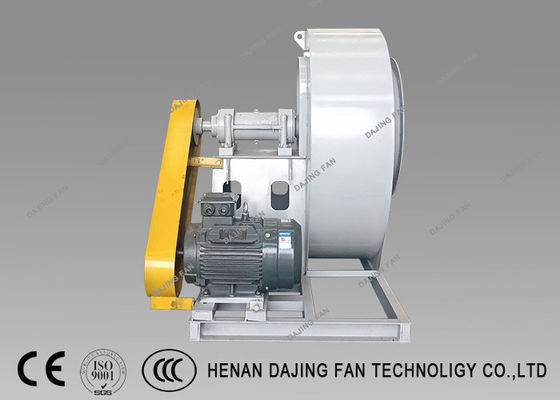

Middle Pressure Industrial Centrifugal Fans High Air Flow Blower 380v
The main features of the fan are: high fan efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and the use of backward-type blades. The full-pressure efficiency of the fan at the optimum working point is 86.5% noise index ( Compared with A sound level) LS = 11.5 decibels, these two indicators are the best level compared with the current domestic industrial boilers.
|
Middle Pressure Industrial Centrifugal Fans High Air Flow Blower 380v |
|||
| Centrifugal fan | Air Flow | 3000~41000 | m3/h |
| Pressure | 1800~5200 | Pa | |
| Rotating speed | 2900/2400/1800 | r/min | |
| Material | Carbon steel | ||
| Motor | Power | 5.5~75 | kw |
| Voltage | 220/380/440 | v | |
| Frequency | 50/60 | hz | |
High strength wear-resistant impeller anti-leaking bearing box.
Transmission part group consists of main shaft, bearing box, rolling bearing, pulley or coupling, etc.
Inlet and outlet flexible joints, dampers.
Inlet valve, bearing temperature and vibration dective sensers, impeller cleaning nozzle are optional.
With single suction, backward of monoblock type blades impeller have good aerodynamic performance and reliability of smooth operation.
Application field:
Industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, environment protection, mine, metallurgy, petro-chemical, tunnel,Industrial boiler and Dust removal systems etc. , and wind tunnel.
Centrifugal fan production process:
Case Show:
